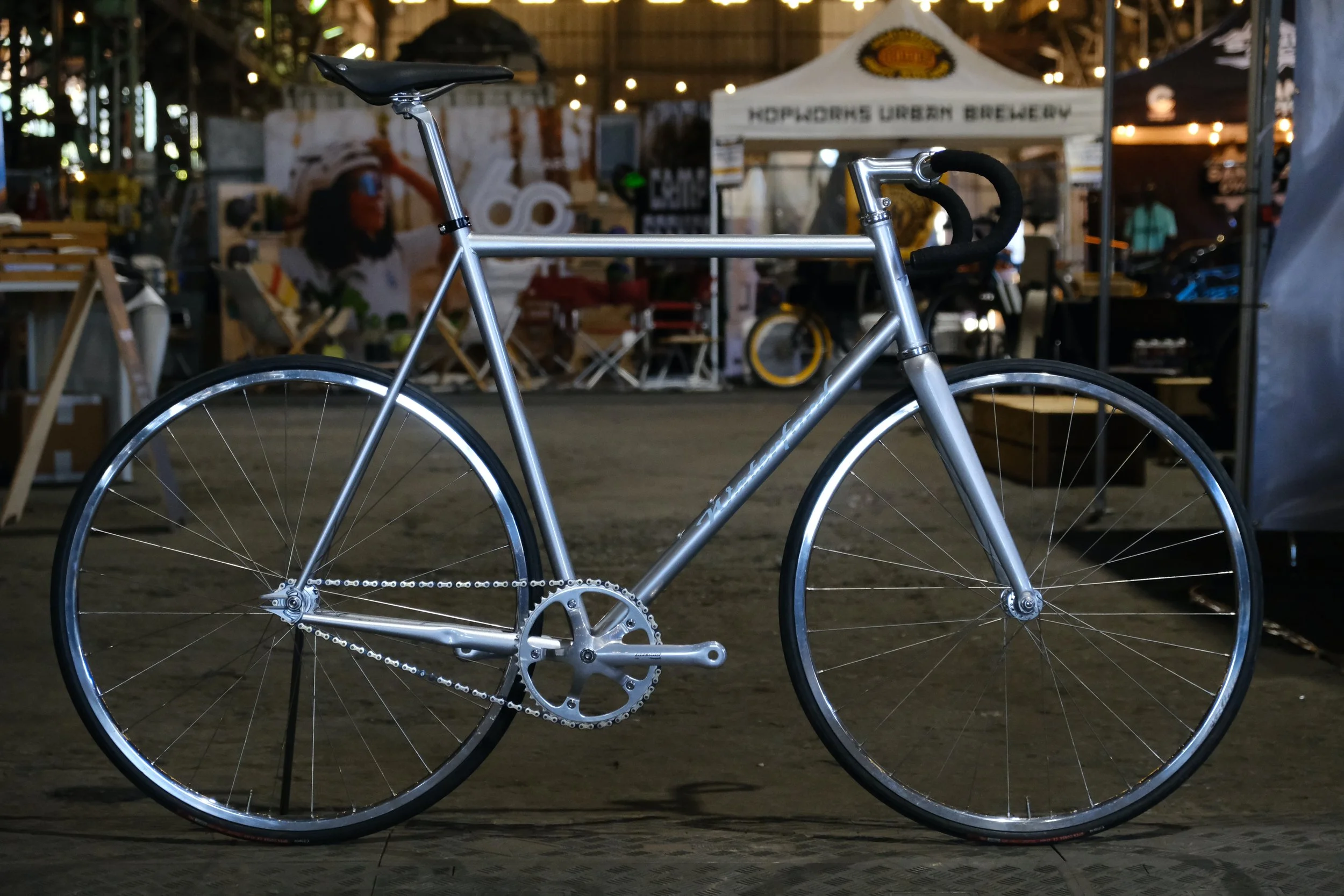

A silver bicycle with a sleek frame, black handlebars, and thin tires is showcased in a dimly lit indoor space, possibly at a market or exhibition.
Close-up of a silver bicycle handlebar and stem, with black grips, on a brownish background.

Waterford Tig Welded Stainless Steel 22-Series Artisan

Our 22-Series bicycle frames feature fully TIG-welded frame construction. There are some advantages of Tig-welded frames over lugs. Carefully selected, per bicycle chosen, blend of Reynolds and KVA stainless allows for a highly tunable ride for the most discerning metal bicycle enthusiasts.

Tig-welded stainless frames allow for a lighter overall bicycle when compared to Lugged frames, such as our Artisan series. Being tig welded, we have no constraints on geometry. We have a firm belief that your bike should fit you, not that you need to fit your bike.

Much like our 22-Series Artisen bikes, stainless tubes can be drawn much thinner than standard chromoly without losing strength. If you have any questions about the advantages of Martensitic Precipitation-Hardening stainless steel tubesets, please reach out.

The customization does not stop with the geometry. Frame finishes are available upon request. If you can dream it we can achieve it.

Close-up of a silver bicycle frame with the word 'Waterford' written on it, showing part of the front wheel and chain.

Frame Details:

  • Tubing: Hand-selected KVA and Reynolds 931Butted Stainless Steel

  • Bottle Mounts: down tube and seat tube locations, additional mounts available

  • Finish: Polished, painted, mirror, and any combination

  • Production: Custom design and made one-by-one in Durango, Colorado

  • Custom Sizing: No additional charge

  • Lead time From Time of Order: 10 to 12 weeks

  • Frame Weight: 2.5 to 4 pounds, based on sizing and geometry

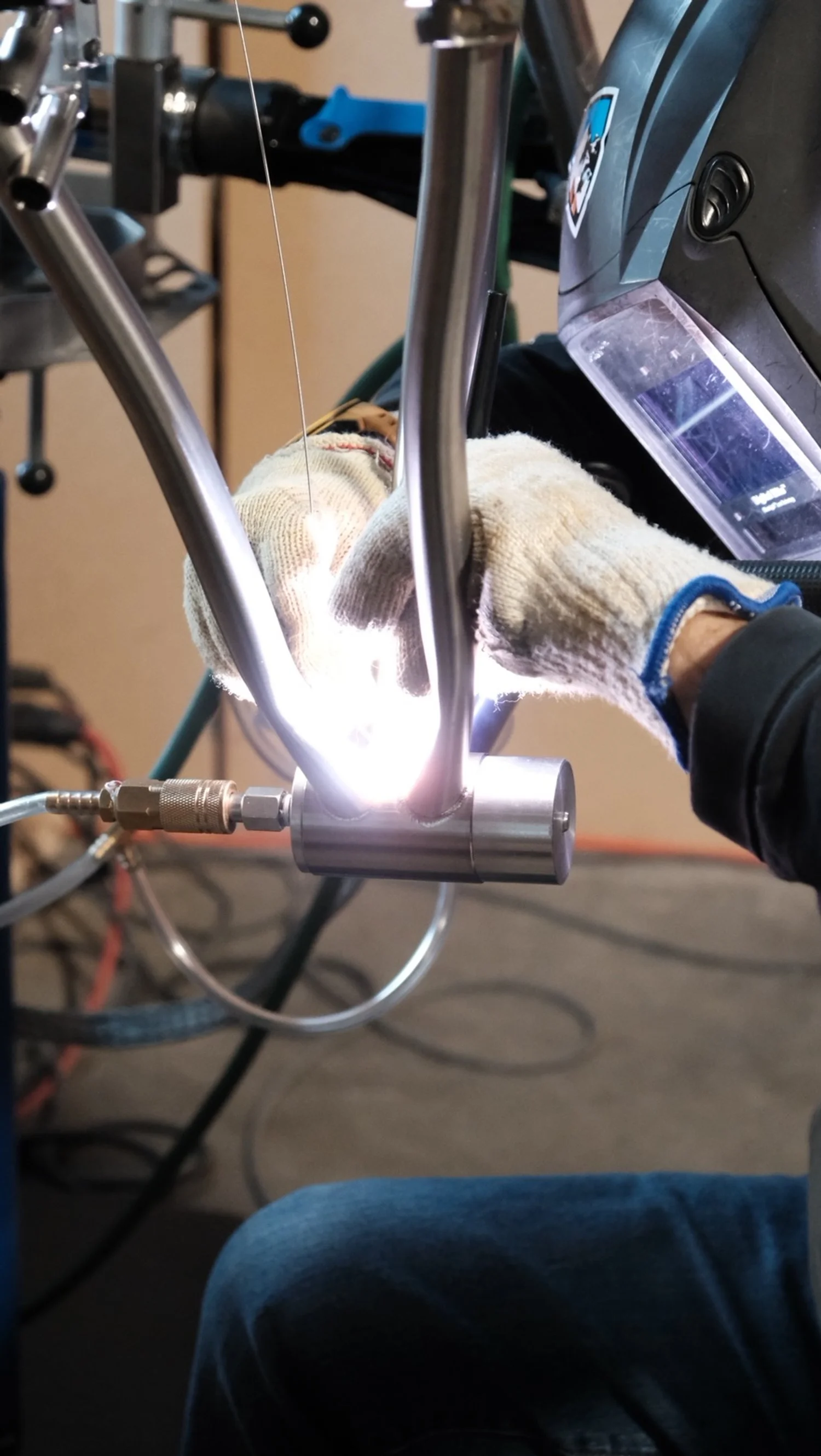

A person performing TIG welding on a metal tube, wearing gloves and a protective welding helmet, with welding equipment and wires visible.

Models:

Our 22-Series bicycles have no model names. Each frame we craft is an involved and intimate conversation about what your new bike needs to do for you. Our Tig-welded frames fall into a few major categories: traditional road, all-road, touring, travel and gravel.

  • Tire Width: 32c to 50c groupset and surface dependant

  • Headtube: 1 1/8”, EC37, tapered, or 44mm straight

  • Bottom Bracket: BSA 68 or T47 68

  • Brake mount: Rim brake, Canti, or disc

  • Hub spacing: 9x130 or 12x142

  • Cable routing: Internal or external

  • Front Derailleur: Braze-on, Clamp-on, or none

  • Seatpost Diameter: 26.8, 27.2, or 31.6

  • Warranty: Lifetime to the original owner

Hand Crafted One At A Time

  • Dream it.

    Always wanted to try a stainless bike? Want a lightweight frame with the ubiquitous steel ride characteristics? Are you looking for a modern performance machine with classic aesthetics? Need to replace the old reliable? We are here to help you figure out your next dream ride.

  • Design It

    A team with 40+ years of custom bike design and tens of thousands of bikes under their belt will make it happen. From personal bike fits, phone calls, and in-person visits, we can help you figure out exactly what that next bike needs to be for you.

  • Build It

    Modern machines, state-of-the-art precision, and a team of fabricators will build your next frame to the highest standards of quality, cleanliness, and strength. Located in the alpine mountains of the San Juans, our builders are multi-disciplinary riders themselves. We understand that what is crafted in our shop will often outlive us.

Custom Design Fit Sheet .PDF
